Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •ABB
Technical specifications
Mounting methodDIN rail (top hat rail) 35 mm
Voltage protection level L-N1.4kV
Signalling at the deviceOptic
Nominal voltage DC-V
Category type 2Yes
Number of conductors (without earthing)4
Nominal discharge surge current (8/20)5kA
With remote signalling contactNo
Nominal voltage AC690V
Max. continuous voltage AC440V
Construction size4 modular spacing
Voltage protection level1.5kV
System configuration TNYes
System configuration TN-CNo
Max. conductor cross section solid (solid, stranded)25mm²
System configuration ITNo
Max. conductor cross section flexible (fine-strand)16mm²
System configuration otherNo
Integrated backup fuseNo
System configuration DCNo
System configuration TN-SYes
Max. continuous voltage DC-V
Voltage protection level N-PE1.4kV
Degree of protection (IP)IP20
Max. PV-voltage-V
System configuration TTYes
System configuration TN-C-SYes
Max. discharge surge current (8/20)80kA
Short-circuit breaking capacity (Isccr)100kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

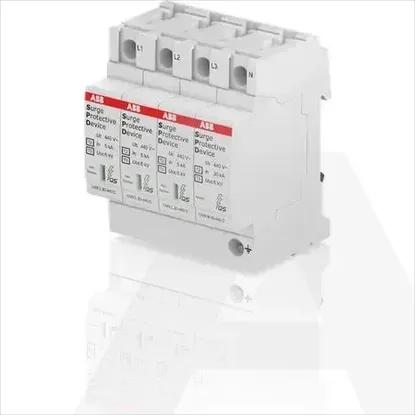

2CTB803973R1300 | OVR T2-T3 3N 20-440 P QS
