Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •ABB
Technical specifications
Max. continuous voltage AC275V
Voltage protection level1.4kV
Number of conductors (without earthing)1
Nominal discharge surge current (8/20)20kA
Mounting methodDIN rail (top hat rail) 35 mm
With remote signalling contactYes
Construction size4 modular spacing
Nominal voltage AC230V
Nominal voltage DC-V
Category type 2Yes
Max. continuous voltage DC-V
Degree of protection (IP)IP20
Short-circuit breaking capacity (Isccr)100kA
Signalling at the deviceOptic
Max. discharge surge current (8/20)40kA
System configuration DCNo
Max. PV-voltage-V
Voltage protection level L-N1.4kV
System configuration TN-SYes
System configuration TNYes
System configuration ITNo
Max. conductor cross section solid (solid, stranded)35mm²
Integrated backup fuseYes
Voltage protection level N-PE1.4kV
System configuration TN-CNo
System configuration TN-C-SYes
System configuration TTYes
Max. conductor cross section flexible (fine-strand)25mm²
System configuration otherNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

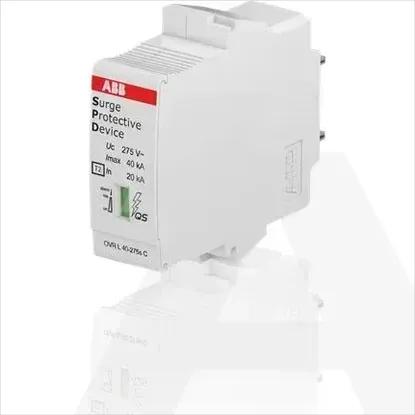

2CTB815704R2600 | OVR T2 40-275s C QS
