Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •ABB
Technical specifications
Number of conductors (without earthing)1
Nominal voltage AC400V
Max. continuous voltage AC440V
Voltage protection level1.8kV
With remote signalling contactYes
Mounting methodDIN rail (top hat rail) 35 mm
Nominal discharge surge current (8/20)20kA
Nominal voltage DC-V
Construction size1 modular spacing
Voltage protection level N-PE1.8kV
Max. PV-voltage-V
Degree of protection (IP)IP20
Integrated backup fuseYes
Signalling at the deviceOptic
Voltage protection level L-N1.8kV
System configuration DCNo
System configuration TN-SNo
System configuration TNYes
System configuration TN-CYes
Max. continuous voltage DC-V
System configuration ITYes
Max. conductor cross section solid (solid, stranded)35mm²
Max. conductor cross section flexible (fine-strand)25mm²
Category type 2Yes
System configuration TN-C-SNo
System configuration otherNo
System configuration TTNo
Short-circuit breaking capacity (Isccr)100kA
Max. discharge surge current (8/20)40kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

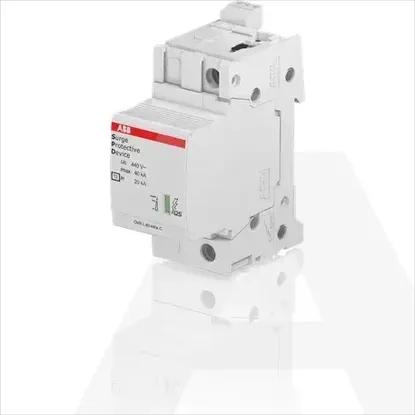

2CTB815704R2900 | OVR T2 40-440s P TS QS
