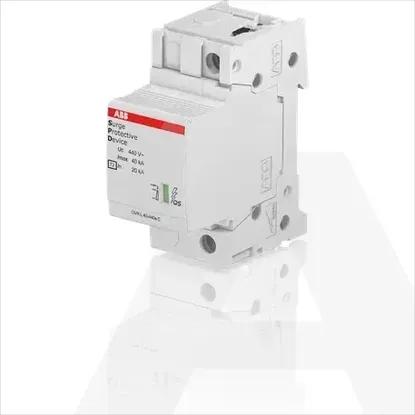

2CTB815704R4100 | OVR T2 40-440s P QS
Code: 1661318
Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •ABB
Technical specifications
Max. continuous voltage DC-V
Nominal voltage DC-V
Max. PV-voltage-V
System configuration DCNo
System configuration TN-CNo
System configuration ITYes
System configuration TN-C-SYes
Nominal voltage AC400V
System configuration TNYes
Nominal discharge surge current (8/20)20kA
System configuration TTYes
System configuration TN-SYes
Max. discharge surge current (8/20)40kA
Mounting methodDIN rail (top hat rail) 35 mm
Number of conductors (without earthing)1
System configuration otherNo
Construction size1 modular spacing
Max. continuous voltage AC440V
Short-circuit breaking capacity (Isccr)100kA
Voltage protection level1.8kV
Max. conductor cross section solid (solid, stranded)35mm²
Voltage protection level L-N1.8kV
Voltage protection level N-PE1.8kV
Degree of protection (IP)IP20
Integrated backup fuseYes
With remote signalling contactNo
Signalling at the deviceOptic
Max. conductor cross section flexible (fine-strand)25mm²
Category type 2Yes
