Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •ABB
Technical specifications
Number of conductors (without earthing)1
Max. conductor cross section solid (solid, stranded)35mm²
With remote signalling contactNo
Nominal discharge surge current (8/20)20kA
Max. continuous voltage DC-V
Degree of protection (IP)IP20
Category type 2Yes
Integrated backup fuseYes
System configuration DCNo
Voltage protection level N-PE1.4kV
Max. continuous voltage AC275V
System configuration ITNo
Voltage protection level1.4kV
Voltage protection level L-N1.4kV
Nominal voltage AC230V
Max. conductor cross section flexible (fine-strand)25mm²
Signalling at the deviceOptic
Mounting methodDIN rail (top hat rail) 35 mm
Max. PV-voltage-V
Nominal voltage DC-V
Construction size1 modular spacing
System configuration TNYes
System configuration TN-CNo
System configuration TTYes
System configuration TN-SYes
System configuration otherNo
System configuration TN-C-SYes
Short-circuit breaking capacity (Isccr)100kA
Max. discharge surge current (8/20)80kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

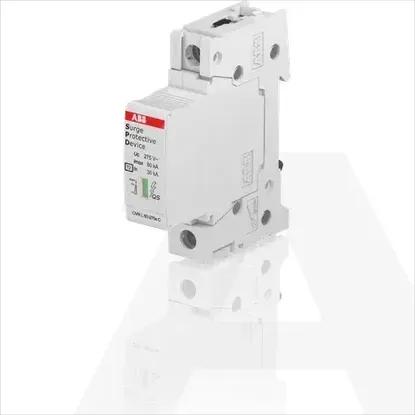

2CTB815708R1200 | OVR T2 80-275s P QS
