Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •ABB
Technical specifications
Mounting methodDirect mounting
Category type 2Yes
Nominal discharge surge current (8/20)20kA
Signalling at the deviceOptic
Voltage protection level1.8kV
Max. continuous voltage DC-V
Number of conductors (without earthing)1
Nominal voltage DC-V
Max. continuous voltage AC440V
Nominal voltage AC400V
Voltage protection level L-N1.8kV
Construction size4 modular spacing
With remote signalling contactYes
Degree of protection (IP)IP20
Integrated backup fuseYes
Max. conductor cross section solid (solid, stranded)35mm²
Max. PV-voltage-V
Voltage protection level N-PE1.8kV
System configuration TNYes
System configuration DCNo
System configuration TN-CNo
System configuration TN-SYes
Max. discharge surge current (8/20)80kA
System configuration ITYes
Max. conductor cross section flexible (fine-strand)25mm²
Short-circuit breaking capacity (Isccr)100kA
System configuration otherNo
System configuration TTYes
System configuration TN-C-SYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

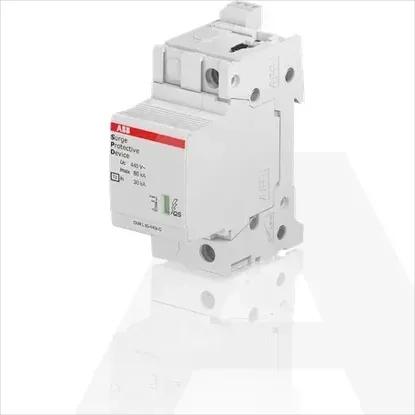

2CTB815708R2900 | OVR T2 80-440s P TS QS
