Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •ABB
Technical specifications
Construction size1 modular spacing
Mounting methodDirect mounting
With remote signalling contactNo
Number of conductors (without earthing)1
Nominal voltage AC400V
Voltage protection level1.8kV
Voltage protection level L-N1.8kV
Nominal voltage DC-V
Signalling at the deviceOptic
Max. conductor cross section solid (solid, stranded)35mm²
Category type 2Yes
Integrated backup fuseYes
Max. conductor cross section flexible (fine-strand)25mm²
Max. PV-voltage-V
Max. continuous voltage DC-V
Degree of protection (IP)IP20
System configuration DCNo
Nominal discharge surge current (8/20)30kA
System configuration TN-CNo
System configuration TNYes
System configuration ITYes
Max. continuous voltage AC440V
Voltage protection level N-PE1.8kV
System configuration TTYes
Max. discharge surge current (8/20)80kA
Short-circuit breaking capacity (Isccr)100kA
System configuration TN-SYes
System configuration otherNo
System configuration TN-C-SYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

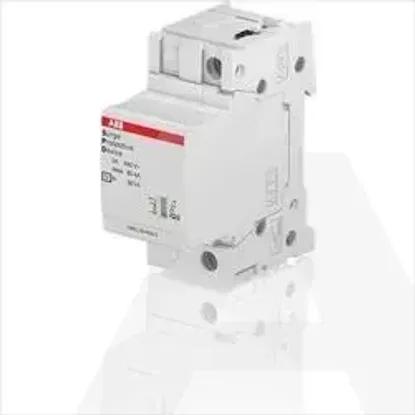

2CTB815708R4100 | OVR T2 80-440s P QS
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Earthing, lightning and surge protection
- Surge protection device for power supply systems
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Construction size
1 modular spacing
Mounting method
Direct mounting
With remote signalling contact
Number of conductors (without earthing)
1
Nominal voltage AC
400V
Voltage protection level
1.8kV
Voltage protection level L-N
1.8kV
Nominal voltage DC
-V
Signalling at the device
Optic
Max. conductor cross section solid (solid, stranded)
35mm²
Category type 2
Integrated backup fuse
Max. conductor cross section flexible (fine-strand)
25mm²
Max. PV-voltage
-V
Max. continuous voltage DC
-V
Degree of protection (IP)
IP20
System configuration DC
Nominal discharge surge current (8/20)
30kA
System configuration TN-C
System configuration TN
System configuration IT
Max. continuous voltage AC
440V
Voltage protection level N-PE
1.8kV
System configuration TT
Max. discharge surge current (8/20)
80kA
Short-circuit breaking capacity (Isccr)
100kA
System configuration TN-S
System configuration other
System configuration TN-C-S
