Details
- •Sensors
- •Position switch with guard locking
- •1 KOM
- •ABB
Technical specifications
Rated operation current Ie at AC-15, 230 V-A
Suitable for safety functionsNo
Rated operation current Ie at DC-13, 230 V-A
With status indicationNo
Rated control supply voltage Us magnet drive at AC 50 Hz- - -V
Rated control supply voltage Us magnet drive at DC- - -V
Degree of protection (IP)IP67
Material housingOther
Rated control supply voltage Us magnet drive at AC 60 Hz- - -V
Rated operation current Ie at AC-15, 125 V-A
Rated operation current Ie at AC-15, 24 V-A
Number of safety auxiliary contacts-
Height of sensor176mm
Length of sensor47mm
Rated operation current Ie at DC-13, 24 V-A
Width sensor46mm
With escape releaseNo
Rated operation current Ie at DC-13, 125 V-A
Number of contacts as normally closed contact0
Number of contacts as normally open contact0
Guard locking force2000N
With auxiliary releaseNo
Ambient temperature during operating- - -°C
Number of contacts as change-over contact0
Degree of protection (NEMA)6
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

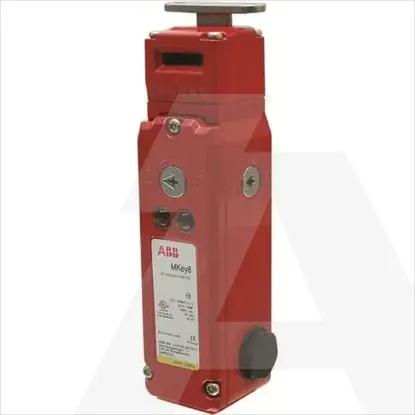

2TLA050011R0132 | MKEY8, SOL M20, 24V, STD. KEY
