Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Voltage typeAC
Mounting methodDIN rail
Built-in depth44mm
Rated current63A
Number of poles4
Selective protectionNo
Rated voltage400V
Width in number of modular spacings7
Short-circuit breaking capacity (Icw)10kA
Surge current capacity0.25kA
Leakage current typeA
Rated fault current0.03A
Rated insulation voltage Ui500V
Pollution degree2
With interlocking deviceYes
Additional equipment possibleYes
Explosion-proofNo
Short-time delayed trippingNo
Rated impulse withstand voltage Uimp4kV
Ambient temperature during operating-5 - 40°C
Connectable conductor cross section multi-wired1.5 - 2.5mm²
Frequency50 Hz
Degree of protection (IP)IP20
Connectable conductor cross section solid-core1.5 - 2.5mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

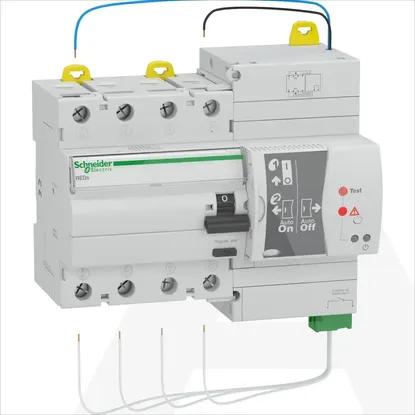

18268 | FID Z APU REDs 4P 63A 30MA TIP a
