Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •SCHNEIDER

Technical specifications

Voltage typeAC/DC
Rated current16A
Built-in depth47mm
Rated voltage400V
Release characteristicC
Explosion-proofNo
Concurrently switching neutral conductorNo
Over voltage category4
Rated insulation voltage Ui690V
Width in number of modular spacings1.5
Pollution degree3
Frequency50 - 60Hz
Degree of protection (IP)IP20
Current limiting class-
Number of protected poles1
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Rated impulse withstand voltage Uimp8kV
Flush-mounted installationNo
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Ambient temperature during operating-30 - 70°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Connectable conductor cross section solid-core1.5 - 50mm²
Number of poles (total)1
Connectable conductor cross section multi-wired1 - 35mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

18611 | Prekidac Minijat. NG125N 25KA 1P 16A C

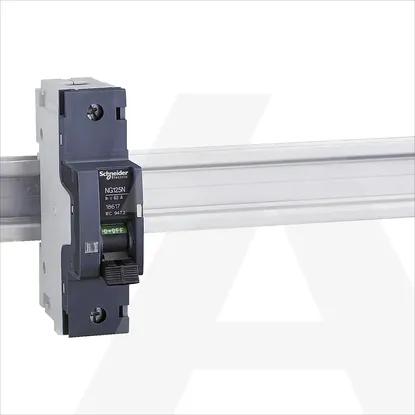

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • SCHNEIDER

Technical specifications

Voltage type

AC/DC

Rated current

16A

Built-in depth

47mm

Rated voltage

400V

Release characteristic

C

Explosion-proof

Concurrently switching neutral conductor

Over voltage category

4

Rated insulation voltage Ui

690V

Width in number of modular spacings

1.5

Pollution degree

3

Frequency

50 .. 60Hz

Degree of protection (IP)

IP20

Current limiting class

-

Number of protected poles

1

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

25kA

Rated impulse withstand voltage Uimp

8kV

Flush-mounted installation

Additional equipment possible

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

-kA

Ambient temperature during operating

-30 .. 70°C

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

6kA

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

-kA

Connectable conductor cross section solid-core

1.5 .. 50mm²

Number of poles (total)

1

Connectable conductor cross section multi-wired

1 .. 35mm²
