Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Voltage typeAC/DC
Built-in depth47mm
Rated current20A
Rated voltage400V
Frequency50 - 60Hz
Release characteristicC
Rated insulation voltage Ui690V
Current limiting class-
Over voltage category4
Pollution degree3
Width in number of modular spacings3
Explosion-proofNo
Power loss2.7W
Degree of protection (IP)IP20
Number of protected poles2
Concurrently switching neutral conductorYes
Connectable conductor cross section solid-core1.5 - 50mm²
Connectable conductor cross section multi-wired1 - 35mm²
Ambient temperature during operating-30 - 70°C
Flush-mounted installationNo
Additional equipment possibleYes
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated impulse withstand voltage Uimp8kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

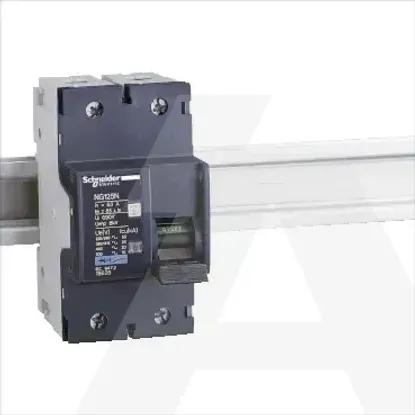

18623 | ACTI9 NG125N MCB 2P C 20A
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Voltage type
AC/DC
Built-in depth
47mm
Rated current
20A
Rated voltage
400V
Frequency
50 .. 60Hz
Release characteristic
C
Rated insulation voltage Ui
690V
Current limiting class
-
Over voltage category
4
Pollution degree
3
Width in number of modular spacings
3
Explosion-proof
Power loss
2.7W
Degree of protection (IP)
IP20
Number of protected poles
2
Concurrently switching neutral conductor
Connectable conductor cross section solid-core
1.5 .. 50mm²
Connectable conductor cross section multi-wired
1 .. 35mm²
Ambient temperature during operating
-30 .. 70°C
Flush-mounted installation
Additional equipment possible
Number of poles (total)
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
50kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
25kA
Rated impulse withstand voltage Uimp
8kV
