Details

  • •
  • •Circuit breakers and fuses

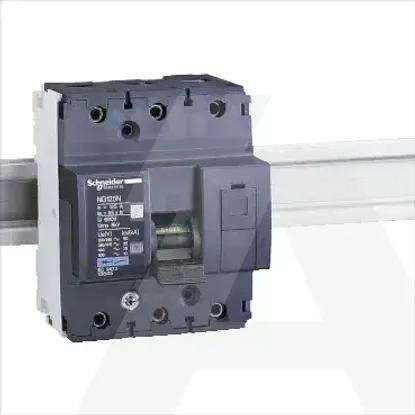

  • •Miniature circuit breaker (MCB)
  • •Minimum order quantity: 1 pcs
  • •SCHNEIDER

Technical specifications

Built-in depth47mm
Rated voltage400V
Voltage typeAC/DC
Width in number of modular spacings4.5
Rated insulation voltage Ui690V
Explosion-proofNo
Frequency50 - 60Hz
Ambient temperature during operating-30 - 70°C
Over voltage category4
Current limiting class-
Connectable conductor cross section multi-wired1 - 35mm²
Number of protected poles3
Concurrently switching neutral conductorNo
Pollution degree3
Degree of protection (IP)IP20
Connectable conductor cross section solid-core1.5 - 50mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Additional equipment possibleYes
Rated impulse withstand voltage Uimp8kV
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Rated current10A
Release characteristicC
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
