Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Rated current80A
Built-in depth47mm
Over voltage category4
Frequency50 - 60Hz
Voltage typeAC/DC
Concurrently switching neutral conductorNo
Pollution degree3
Number of protected poles3
Width in number of modular spacings4.5
Rated insulation voltage Ui690V
Release characteristicC
Connectable conductor cross section solid-core16 - 70mm²
Explosion-proofNo
Current limiting class-
Degree of protection (IP)IP20
Rated voltage400V
Number of poles (total)3
Ambient temperature during operating-30 - 70°C
Connectable conductor cross section multi-wired10 - 50mm²
Flush-mounted installationNo
Additional equipment possibleYes
Rated impulse withstand voltage Uimp8kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

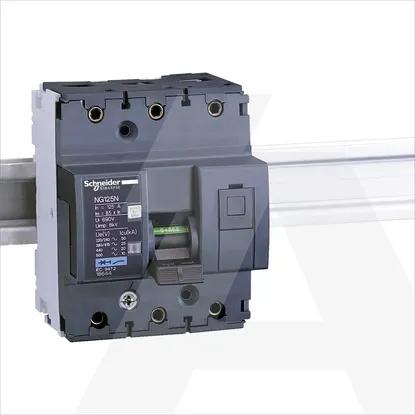

18640 | Prekidac Minijat. NG125N 25KA 3P 80A C
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Rated current
80A
Built-in depth
47mm
Over voltage category
4
Frequency
50 .. 60Hz
Voltage type
AC/DC
Concurrently switching neutral conductor
Pollution degree
3
Number of protected poles
3
Width in number of modular spacings
4.5
Rated insulation voltage Ui
690V
Release characteristic
C
Connectable conductor cross section solid-core
16 .. 70mm²
Explosion-proof
Current limiting class
-
Degree of protection (IP)
IP20
Rated voltage
400V
Number of poles (total)
3
Ambient temperature during operating
-30 .. 70°C
Connectable conductor cross section multi-wired
10 .. 50mm²
Flush-mounted installation
Additional equipment possible
Rated impulse withstand voltage Uimp
8kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
50kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
-kA
