Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •SCHNEIDER

Technical specifications

Built-in depth47mm
Rated current125A
Voltage typeAC/DC
Frequency50 - 60Hz
Rated voltage400V
Release characteristicC
Rated insulation voltage Ui690V
Over voltage category4
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Number of protected poles3
Connectable conductor cross section multi-wired10 - 50mm²
Concurrently switching neutral conductorNo
Rated impulse withstand voltage Uimp8kV
Pollution degree3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Ambient temperature during operating-30 - 70°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Flush-mounted installationNo
Connectable conductor cross section solid-core16 - 70mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Current limiting class-
Width in number of modular spacings6
Degree of protection (IP)IP20
Number of poles (total)4
Explosion-proofNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

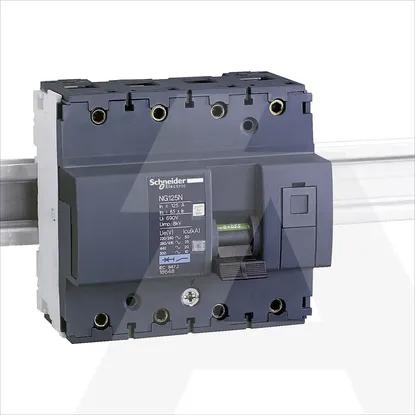

18648 | Prekidac Mini. NG125N 25KA 3P+N 125A C
