Details

  • •
  • •Circuit breakers and fuses

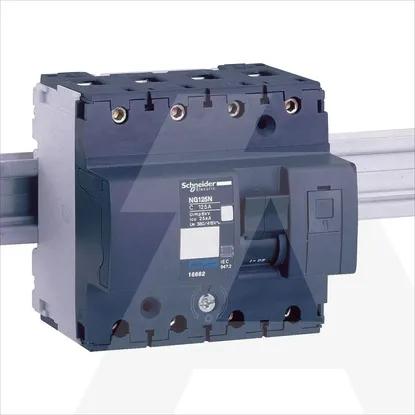

  • •Miniature circuit breaker (MCB)
  • •Minimum order quantity: 1 pcs
  • •SCHNEIDER

Technical specifications

Frequency50 - 60Hz
Rated insulation voltage Ui690V
Current limiting class-
Voltage typeAC/DC
Over voltage category4
Width in number of modular spacings6
Pollution degree3
Rated voltage400V
Explosion-proofNo
Connectable conductor cross section solid-core1.5 - 50mm²
Concurrently switching neutral conductorYes
Degree of protection (IP)IP20
Number of protected poles4
Built-in depth47mm
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Ambient temperature during operating-30 - 70°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Flush-mounted installationNo
Connectable conductor cross section multi-wired1 - 35mm²
Rated impulse withstand voltage Uimp8kV
Rated current40A
Release characteristicC
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
