Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •SCHNEIDER

Technical specifications

Current limiting class-
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Built-in depth47mm
Number of poles (total)4
Number of protected poles4
Release characteristicB
Rated voltage400V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Width in number of modular spacings6
Flush-mounted installationNo
Rated insulation voltage Ui690V
Power loss5.6W
Degree of protection (IP)IP20
Pollution degree3
Rated current80A
Rated impulse withstand voltage Uimp8kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Explosion-proofNo
Voltage typeAC/DC
Connectable conductor cross section solid-core16 - 70mm²
Additional equipment possibleYes
Over voltage category4
Frequency50 - 60Hz
Ambient temperature during operating-30 - 70°C
Concurrently switching neutral conductorYes
Connectable conductor cross section multi-wired10 - 50mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

18666 | Prekidac Minijat. NG125N 25KA 4P 80A B

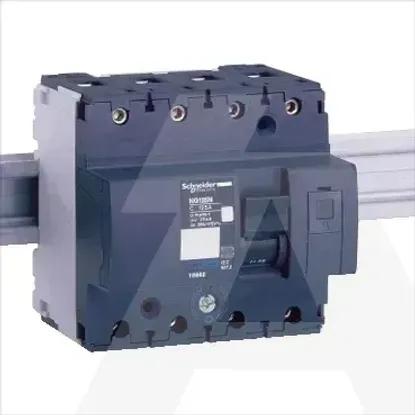

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • SCHNEIDER

Technical specifications

Current limiting class

-

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

-kA

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

-kA

Built-in depth

47mm

Number of poles (total)

4

Number of protected poles

4

Release characteristic

B

Rated voltage

400V

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

25kA

Width in number of modular spacings

6

Flush-mounted installation

Rated insulation voltage Ui

690V

Power loss

5.6W

Degree of protection (IP)

IP20

Pollution degree

3

Rated current

80A

Rated impulse withstand voltage Uimp

8kV

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

50kA

Explosion-proof

Voltage type

AC/DC

Connectable conductor cross section solid-core

16 .. 70mm²

Additional equipment possible

Over voltage category

4

Frequency

50 .. 60Hz

Ambient temperature during operating

-30 .. 70°C

Concurrently switching neutral conductor

Connectable conductor cross section multi-wired

10 .. 50mm²
