Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •SCHNEIDER

Technical specifications

Built-in depth81mm
Voltage typeAC
Frequency50 - 60Hz
Rated voltage230V
Pollution degree3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V36kA
Current limiting class0
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V9kA
Suitable for flush-mounted installationNo
Number of protected poles1
Over voltage category4
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V0kA
Concurrently switching neutral conductorNo
Width in number of modular spacings1.5
Rated current10A
Release characteristicC
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V0kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

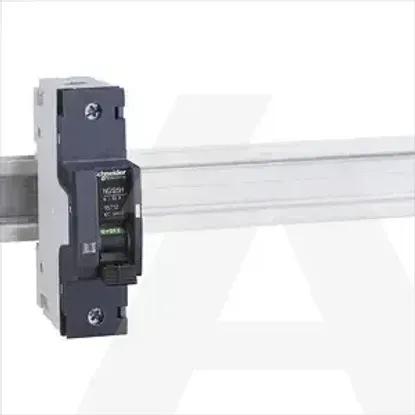

18705 | ACTI9 NG125H MCB 1P C 10A

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • SCHNEIDER

Technical specifications

Built-in depth

81mm

Voltage type

AC

Frequency

50 .. 60Hz

Rated voltage

230V

Pollution degree

3

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

36kA

Current limiting class

0

Degree of protection (IP)

IP20

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

9kA

Suitable for flush-mounted installation

Number of protected poles

1

Over voltage category

4

Additional equipment possible

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

0kA

Concurrently switching neutral conductor

Width in number of modular spacings

1.5

Rated current

10A

Release characteristic

C

Number of poles (total)

1

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

0kA

VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
