Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Current limiting class-
Rated voltage400V
Voltage typeAC/DC
Frequency50 - 60Hz
Release characteristicC
Pollution degree3
Degree of protection (IP)IP20
Rated current40A
Rated insulation voltage Ui690V
Number of protected poles1
Over voltage category4
Connectable conductor cross section solid-core1.5 - 50mm²
Concurrently switching neutral conductorNo
Built-in depth47mm
Connectable conductor cross section multi-wired1 - 35mm²
Suitable for flush-mounted installationNo
Explosion-proofNo
Width in number of modular spacings1.5
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V36kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Ambient temperature during operating-30 - 70°C
Number of poles (total)1
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V9kA
Rated impulse withstand voltage Uimp8kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

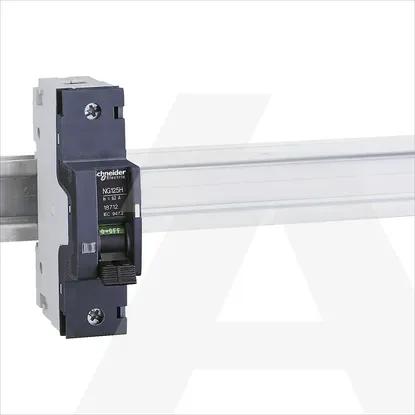

18710 | Prekidac Minijat. NG125H 36KA 1P 40A C
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Current limiting class
-
Rated voltage
400V
Voltage type
AC/DC
Frequency
50 .. 60Hz
Release characteristic
C
Pollution degree
3
Degree of protection (IP)
IP20
Rated current
40A
Rated insulation voltage Ui
690V
Number of protected poles
1
Over voltage category
4
Connectable conductor cross section solid-core
1.5 .. 50mm²
Concurrently switching neutral conductor
Built-in depth
47mm
Connectable conductor cross section multi-wired
1 .. 35mm²
Suitable for flush-mounted installation
Explosion-proof
Width in number of modular spacings
1.5
Additional equipment possible
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
36kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
-kA
Flush-mounted installation
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-kA
Ambient temperature during operating
-30 .. 70°C
Number of poles (total)
1
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
9kA
Rated impulse withstand voltage Uimp
8kV
