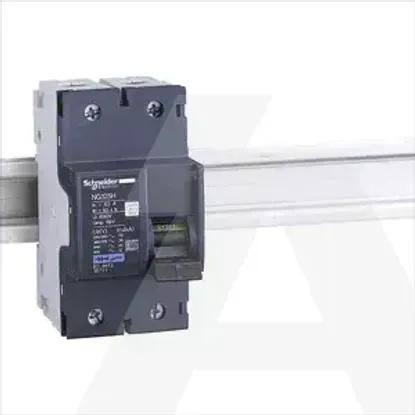

18718 | Prekidac Minijat. NG125H 36KA 2P 32A C
Code: 1690277
ManufacturerSchneider Electric
Catalog number18718
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code3303430187189
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •6 KOM
- •SCHNEIDER
Technical specifications
Voltage typeAC
Built-in depth81mm
Rated voltage230V
Over voltage category4
Additional equipment possibleYes
Current limiting class0
Width in number of modular spacings3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V70kA
Frequency50 - 60Hz
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V36kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V0kA
Suitable for flush-mounted installationNo
Concurrently switching neutral conductorYes
Number of protected poles2
Pollution degree3
Rated current32A
Release characteristicC
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V0kA
