Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •SCHNEIDER

Technical specifications

Built-in depth47mm
Degree of protection (IP)IP20
Connectable conductor cross section solid-core1.5 - 50mm²
Over voltage category4
Voltage typeAC/DC
Explosion-proofNo
Number of protected poles3
Rated current16A
Pollution degree3
Frequency50 - 60Hz
Rated voltage415V
Release characteristicC
Width in number of modular spacings4.5
Concurrently switching neutral conductorNo
Rated insulation voltage Ui690V
Current limiting class-
Flush-mounted installationNo
Ambient temperature during operating-30 - 70°C
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V36kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V70kA
Rated impulse withstand voltage Uimp8kV
Connectable conductor cross section multi-wired1 - 35mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

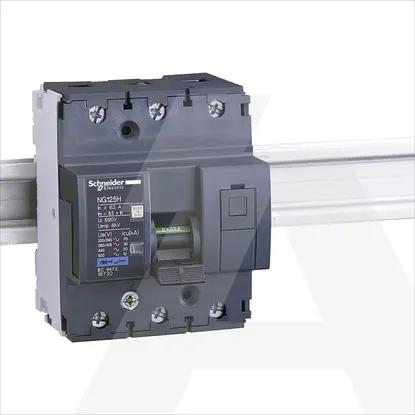

18724 | Prekidac Minijat. NG125H 36KA 3P 16A C

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • SCHNEIDER

Technical specifications

Built-in depth

47mm

Degree of protection (IP)

IP20

Connectable conductor cross section solid-core

1.5 .. 50mm²

Over voltage category

4

Voltage type

AC/DC

Explosion-proof

Number of protected poles

3

Rated current

16A

Pollution degree

3

Frequency

50 .. 60Hz

Rated voltage

415V

Release characteristic

C

Width in number of modular spacings

4.5

Concurrently switching neutral conductor

Rated insulation voltage Ui

690V

Current limiting class

-

Flush-mounted installation

Ambient temperature during operating

-30 .. 70°C

Additional equipment possible

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

36kA

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

-kA

Number of poles (total)

3

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

-kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

70kA

Rated impulse withstand voltage Uimp

8kV

Connectable conductor cross section multi-wired

1 .. 35mm²

VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
