Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Release characteristicB
Width in number of modular spacings1.5
Rated current40A
Rated voltage400V
Rated insulation voltage Ui690V
Pollution degree3
Frequency50 - 60Hz
Built-in depth47mm
Explosion-proofNo
Over voltage category4
Voltage typeAC/DC
Current limiting class-
Suitable for flush-mounted installationNo
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
Number of protected poles1
Additional equipment possibleYes
Connectable conductor cross section solid-core1.5 - 50mm²
Ambient temperature during operating-30 - 70°C
Flush-mounted installationNo
Rated impulse withstand voltage Uimp8kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V12.5kA
Connectable conductor cross section multi-wired1 - 35mm²
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

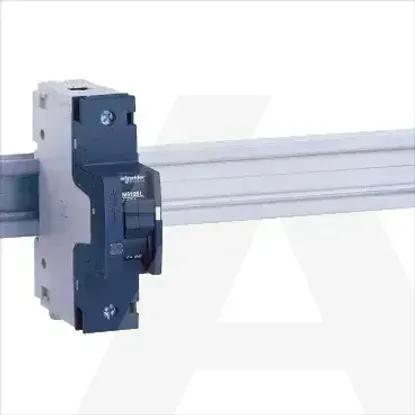

18746 | Prekidac Minijat. NG125L 50KA 1P 40A B
