Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •SCHNEIDER

Technical specifications

Release characteristicB
Voltage typeAC
Rated current80A
Rated voltage230V
Number of protected poles1
Concurrently switching neutral conductorNo
Over voltage category4
Suitable for flush-mounted installationNo
Current limiting class0
Pollution degree3
Width in number of modular spacings1.5
Frequency50 - 60Hz
Built-in depth81mm
Degree of protection (IP)IP20
Number of poles (total)1
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V0kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V0kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V12.5kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

18749 | Prekidac Minijat. NG125L 50KA 1P 80A B

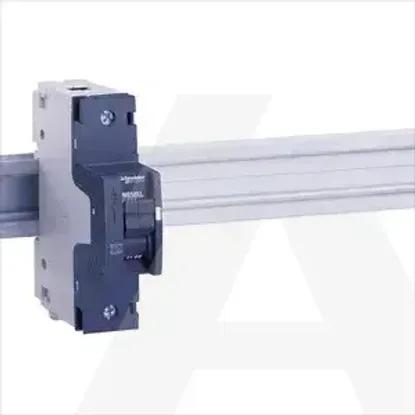

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • SCHNEIDER

Technical specifications

Release characteristic

B

Voltage type

AC

Rated current

80A

Rated voltage

230V

Number of protected poles

1

Concurrently switching neutral conductor

Over voltage category

4

Suitable for flush-mounted installation

Current limiting class

0

Pollution degree

3

Width in number of modular spacings

1.5

Frequency

50 .. 60Hz

Built-in depth

81mm

Degree of protection (IP)

IP20

Number of poles (total)

1

Additional equipment possible

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

0kA

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

0kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

50kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

12.5kA

VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
