Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Rated voltage230V
Voltage typeAC/DC
Rated current16A
Built-in depth47mm
Release characteristicB
Rated insulation voltage Ui690V
Frequency50 - 60Hz
Pollution degree3
Concurrently switching neutral conductorYes
Explosion-proofNo
Current limiting class-
Width in number of modular spacings3
Connectable conductor cross section solid-core1.5 - 50mm²
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired1 - 35mm²
Number of protected poles2
Ambient temperature during operating-30 - 70°C
Over voltage category4
Suitable for flush-mounted installationNo
Flush-mounted installationNo
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Rated impulse withstand voltage Uimp8kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V100kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Number of poles (total)2
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

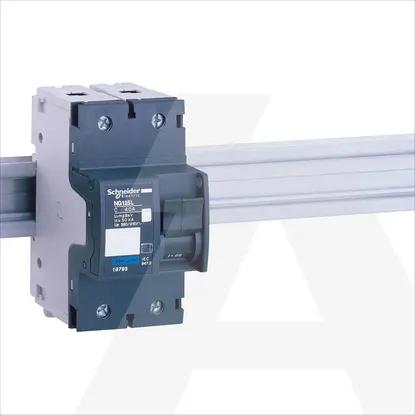

18751 | Prekidac Minijat. NG125L 50KA 2P 16A B
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Rated voltage
230V
Voltage type
AC/DC
Rated current
16A
Built-in depth
47mm
Release characteristic
B
Rated insulation voltage Ui
690V
Frequency
50 .. 60Hz
Pollution degree
3
Concurrently switching neutral conductor
Explosion-proof
Current limiting class
-
Width in number of modular spacings
3
Connectable conductor cross section solid-core
1.5 .. 50mm²
Degree of protection (IP)
IP20
Connectable conductor cross section multi-wired
1 .. 35mm²
Number of protected poles
2
Ambient temperature during operating
-30 .. 70°C
Over voltage category
4
Suitable for flush-mounted installation
Flush-mounted installation
Additional equipment possible
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
-kA
Rated impulse withstand voltage Uimp
8kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
100kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
50kA
Number of poles (total)
2
