Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Voltage typeAC/DC
Pollution degree3
Explosion-proofNo
Rated insulation voltage Ui690V
Built-in depth47mm
Rated current10A
Release characteristicB
Number of protected poles3
Rated voltage400V
Current limiting class-
Concurrently switching neutral conductorNo
Frequency50 - 60Hz
Degree of protection (IP)IP20
Width in number of modular spacings4.5
Over voltage category4
Rated impulse withstand voltage Uimp8kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V100kA
Connectable conductor cross section solid-core1.5 - 50mm²
Connectable conductor cross section multi-wired1 - 35mm²
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Ambient temperature during operating-30 - 70°C
Flush-mounted installationNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

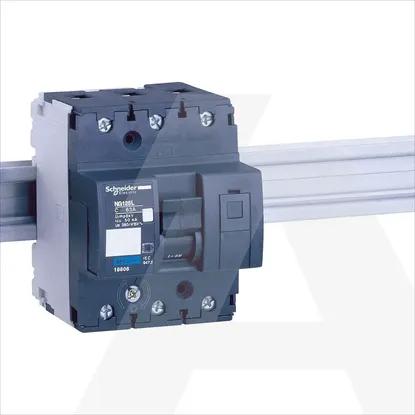

18759 | Prekidac Minijat. NG125L 50KA 3P 10A B
