Details

  • •
  • •Circuit breakers and fuses

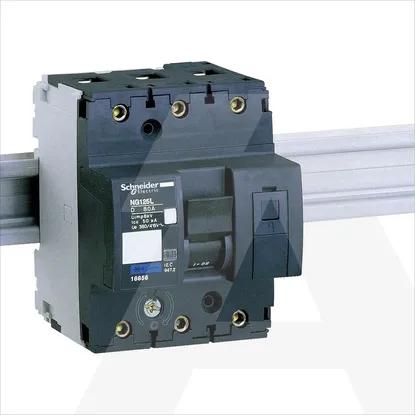

  • •Miniature circuit breaker (MCB)
  • •Minimum order quantity: 1 pcs
  • •SCHNEIDER

Technical specifications

Rated voltage415V
Voltage typeAC/DC
Over voltage category4
Number of protected poles3
Pollution degree3
Connectable conductor cross section multi-wired10 - 50mm²
Frequency50 - 60Hz
Built-in depth47mm
Explosion-proofNo
Width in number of modular spacings4.5
Current limiting class-
Connectable conductor cross section solid-core16 - 70mm²
Rated insulation voltage Ui690V
Degree of protection (IP)IP20
Ambient temperature during operating-30 - 70°C
Concurrently switching neutral conductorNo
Additional equipment possibleYes
Flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V100kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Rated impulse withstand voltage Uimp8kV
Rated current80A
Release characteristicD
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
