Details

  • •

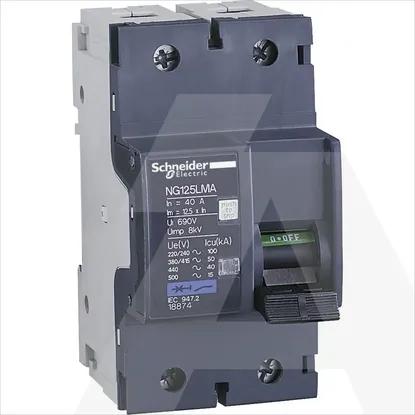

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •Minimum order quantity: 1 pcs
  • •SCHNEIDER

Technical specifications

Rated voltage230V
Current limiting class-
Rated insulation voltage Ui690V
Voltage typeAC/DC
Built-in depth47mm
Concurrently switching neutral conductorYes
Number of protected poles2
Explosion-proofNo
Degree of protection (IP)IP20
Over voltage category4
Pollution degree3
Width in number of modular spacings3
Frequency50 - 60Hz
Suitable for flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V100kA
Flush-mounted installationNo
Connectable conductor cross section solid-core1.5 - 50mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Rated impulse withstand voltage Uimp8kV
Additional equipment possibleYes
Ambient temperature during operating-30 - 70°C
Connectable conductor cross section multi-wired1 - 35mm²
Rated current10A
Release characteristicMA
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
