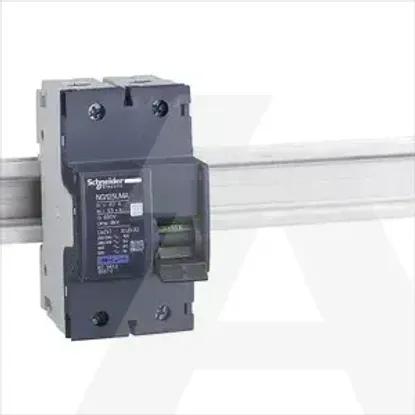

18876 | Prekidac Minijaturni NG125L 2P 80A MA
Code: 1690425
ManufacturerSchneider Electric
Catalog number18876
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code3303430188766
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Voltage typeAC
Frequency50 - 60Hz
Built-in depth81mm
Rated voltage230V
Current limiting class0
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V100kA
Concurrently switching neutral conductorYes
Number of protected poles2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Over voltage category4
Degree of protection (IP)IP20
Suitable for flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V0kA
Width in number of modular spacings3
Pollution degree3
Additional equipment possibleYes
Rated current80A
Release characteristicOther
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V0kA
