Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Built-in depth47mm
Voltage typeAC/DC
Release characteristicMA
Over voltage category4
Current limiting class-
Frequency50 - 60Hz
Rated current6.3A
Rated voltage400V
Rated insulation voltage Ui690V
Width in number of modular spacings4.5
Pollution degree3
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V100kA
Connectable conductor cross section solid-core1.5 - 50mm²
Number of poles (total)3
Concurrently switching neutral conductorNo
Ambient temperature during operating-30 - 70°C
Number of protected poles3
Explosion-proofNo
Connectable conductor cross section multi-wired1 - 35mm²
Additional equipment possibleYes
Flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Rated impulse withstand voltage Uimp8kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

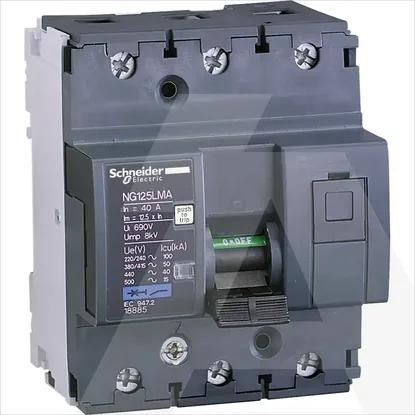

18880 | Prekidac Minijaturni NG125L 3P 6,3A MA
