Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Rated current80A
Rated voltage400V
Built-in depth81mm
Pollution degree3
Voltage typeAC
Frequency50 - 60Hz
Width in number of modular spacings4.5
Over voltage category4
Release characteristicOther
Current limiting class0
Degree of protection (IP)IP20
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V100kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V0kA
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V0kA
Suitable for flush-mounted installationNo
Number of poles (total)3
Number of protected poles3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

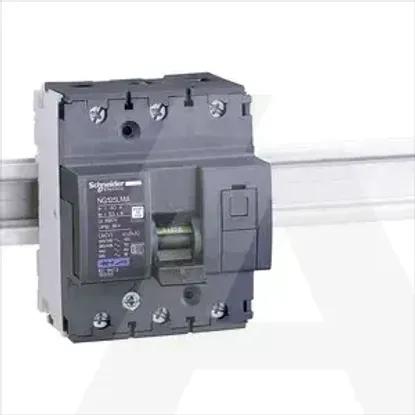

18887 | Prekidac Minijaturni NG125L 3P 80A MA
