Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB) with auxiliary device
- •1 KOM
- •SCHNEIDER
Technical specifications
Built-in depth44.5mm
Rated voltage415V
Voltage typeAC
Current limiting class0
Width in number of modular spacings4.5
Additional equipment attached at deliveryRemote drive
Construction size (according to DIN 43880)3
Rated voltage auxiliary device230V
Pollution degree3
Control voltage type auxiliary equipmentAC
Degree of protection (IP)IP20
Frequency50 - 60Hz
Over voltage category4
Rated short-circuit breaking capacity according to IEC 60947-210kA
Concurrently switching neutral conductorNo
Rated switch current auxiliary device1A
Rated current10A
Release characteristicB
Number of poles2
Rated short-circuit breaking capacity according to EN 608980kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

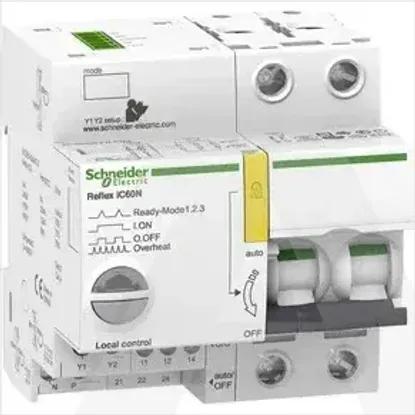

A9C61210 | Reflex IC60N 10KA TI24 10A 2P B
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB) with auxiliary device
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Built-in depth
44.5mm
Rated voltage
415V
Voltage type
AC
Current limiting class
0
Width in number of modular spacings
4.5
Additional equipment attached at delivery
Remote drive
Construction size (according to DIN 43880)
3
Rated voltage auxiliary device
230V
Pollution degree
3
Control voltage type auxiliary equipment
AC
Degree of protection (IP)
IP20
Frequency
50 .. 60Hz
Over voltage category
4
Rated short-circuit breaking capacity according to IEC 60947-2
10kA
Concurrently switching neutral conductor
Rated switch current auxiliary device
1A
Rated current
10A
Release characteristic
B
Number of poles
2
Rated short-circuit breaking capacity according to EN 60898
0kA
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
