Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB) with auxiliary device
- •1 KOM
- •SCHNEIDER
Technical specifications
Frequency50Hz
Voltage typeAC
Release characteristicB
Rated current25A
Built-in depth44.5mm
Rated voltage415V
Frequency50 - 60Hz
Over voltage category4
Current limiting class0
Construction size (according to DIN 43880)3
Number of poles2
Control voltage type auxiliary equipmentAC
Concurrently switching neutral conductorNo
Rated voltage auxiliary device230V
Width in number of modular spacings4.5
Rated switch current auxiliary device1A
Construction size (according to DIN 43880)3
Pollution degree3
Additional equipment attached at deliveryRemote drive
Degree of protection (IP)IP20
Rated short-circuit breaking capacity according to EN 608980kA
Rated short-circuit breaking capacity according to IEC 60947-210kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

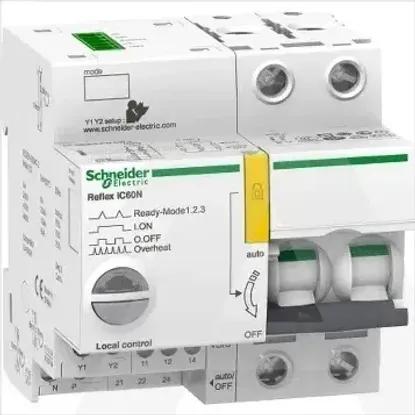

A9C61225 | Reflex IC60N 10KA TI24 25A 2P B
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB) with auxiliary device
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Frequency
50Hz
Voltage type
AC
Release characteristic
B
Rated current
25A
Built-in depth
44.5mm
Rated voltage
415V
Frequency
50 .. 60Hz
Over voltage category
4
Current limiting class
0
Construction size (according to DIN 43880)
3
Number of poles
2
Control voltage type auxiliary equipment
AC
Concurrently switching neutral conductor
Rated voltage auxiliary device
230V
Width in number of modular spacings
4.5
Rated switch current auxiliary device
1A
Construction size (according to DIN 43880)
3
Pollution degree
3
Additional equipment attached at delivery
Remote drive
Degree of protection (IP)
IP20
Rated short-circuit breaking capacity according to EN 60898
0kA
Rated short-circuit breaking capacity according to IEC 60947-2
10kA
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
