Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB) with auxiliary device
- •1 KOM
- •SCHNEIDER
Technical specifications
Release characteristicC
Additional equipment attached at deliveryRemote drive
Rated voltage415V
Rated current10A
Rated switch current auxiliary device1A
Rated voltage auxiliary device230V
Rated short-circuit breaking capacity according to EN 608980kA
Frequency50 - 60Hz
Voltage typeAC
Number of poles3
Concurrently switching neutral conductorNo
Current limiting class0
Built-in depth44.5mm
Control voltage type auxiliary equipmentAC
Width in number of modular spacings5.5
Construction size (according to DIN 43880)3
Pollution degree3
Over voltage category4
Rated short-circuit breaking capacity according to IEC 60947-210kA
Degree of protection (IP)IP20
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

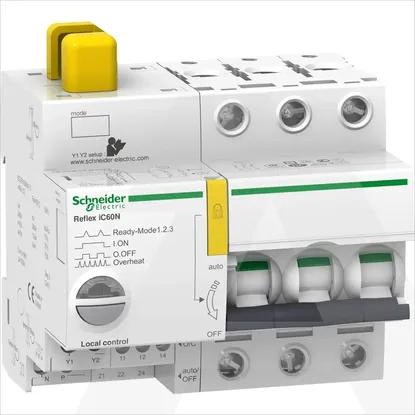

A9C62310 | Reflex IC60N 10KA TI24 10A 3P C
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB) with auxiliary device
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Release characteristic
C
Additional equipment attached at delivery
Remote drive
Rated voltage
415V
Rated current
10A
Rated switch current auxiliary device
1A
Rated voltage auxiliary device
230V
Rated short-circuit breaking capacity according to EN 60898
0kA
Frequency
50 .. 60Hz
Voltage type
AC
Number of poles
3
Concurrently switching neutral conductor
Current limiting class
0
Built-in depth
44.5mm
Control voltage type auxiliary equipment
AC
Width in number of modular spacings
5.5
Construction size (according to DIN 43880)
3
Pollution degree
3
Over voltage category
4
Rated short-circuit breaking capacity according to IEC 60947-2
10kA
Degree of protection (IP)
IP20
