Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB) with auxiliary device
- •1 KOM
- •SCHNEIDER
Technical specifications
Voltage typeAC
Rated voltage415V
Rated current16A
Built-in depth44.5mm
Current limiting class0
Release characteristicC
Frequency50 - 60Hz
Number of poles4
Degree of protection (IP)IP20
Over voltage category4
Pollution degree3
Rated short-circuit breaking capacity according to IEC 60947-210kA
Width in number of modular spacings6.5
Rated short-circuit breaking capacity according to EN 608980kA
Rated switch current auxiliary device1A
Concurrently switching neutral conductorNo
Control voltage type auxiliary equipmentAC
Additional equipment attached at deliveryRemote drive
Rated voltage auxiliary device230V
Construction size (according to DIN 43880)3
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

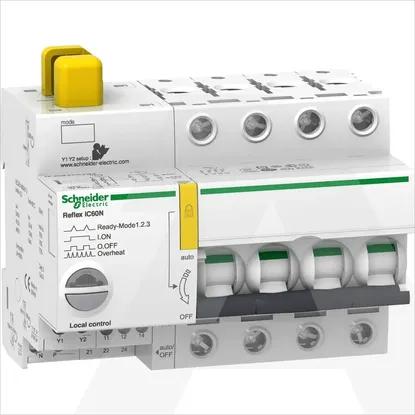

A9C62416 | Reflex IC60N 10KA TI24 16A 4P C
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB) with auxiliary device
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Voltage type
AC
Rated voltage
415V
Rated current
16A
Built-in depth
44.5mm
Current limiting class
0
Release characteristic
C
Frequency
50 .. 60Hz
Number of poles
4
Degree of protection (IP)
IP20
Over voltage category
4
Pollution degree
3
Rated short-circuit breaking capacity according to IEC 60947-2
10kA
Width in number of modular spacings
6.5
Rated short-circuit breaking capacity according to EN 60898
0kA
Rated switch current auxiliary device
1A
Concurrently switching neutral conductor
Control voltage type auxiliary equipment
AC
Additional equipment attached at delivery
Remote drive
Rated voltage auxiliary device
230V
Construction size (according to DIN 43880)
3
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
