Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB) with auxiliary device
- •1 KOM
- •SCHNEIDER
Technical specifications
Built-in depth44.5mm
Voltage typeAC
Current limiting class0
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
Rated current25A
Pollution degree3
Number of poles4
Release characteristicC
Rated voltage415V
Width in number of modular spacings6.5
Over voltage category4
Frequency50 - 60Hz
Control voltage type auxiliary equipmentAC
Rated switch current auxiliary device1A
Rated voltage auxiliary device230V
Rated short-circuit breaking capacity according to EN 608980kA
Rated short-circuit breaking capacity according to IEC 60947-210kA
Additional equipment attached at deliveryRemote drive
Construction size (according to DIN 43880)3
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

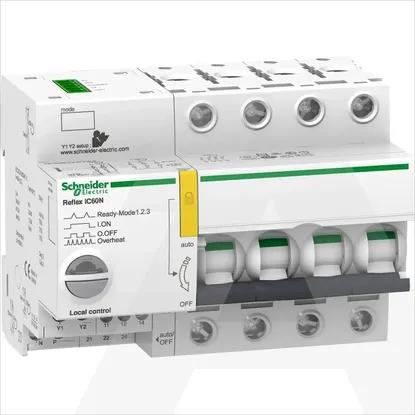

A9C62425 | Reflex IC60N 10KA TI24 25A 4P C
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB) with auxiliary device
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Built-in depth
44.5mm
Voltage type
AC
Current limiting class
0
Concurrently switching neutral conductor
Degree of protection (IP)
IP20
Rated current
25A
Pollution degree
3
Number of poles
4
Release characteristic
C
Rated voltage
415V
Width in number of modular spacings
6.5
Over voltage category
4
Frequency
50 .. 60Hz
Control voltage type auxiliary equipment
AC
Rated switch current auxiliary device
1A
Rated voltage auxiliary device
230V
Rated short-circuit breaking capacity according to EN 60898
0kA
Rated short-circuit breaking capacity according to IEC 60947-2
10kA
Additional equipment attached at delivery
Remote drive
Construction size (according to DIN 43880)
3
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
