Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB) with auxiliary device
- •1 KOM
- •SCHNEIDER
Technical specifications
Voltage typeAC
Frequency50Hz
Rated current16A
Built-in depth44.5mm
Rated short-circuit breaking capacity according to EN 608980kA
Release characteristicD
Width in number of modular spacings4.5
Frequency50 - 60Hz
Rated switch current auxiliary device1A
Rated voltage auxiliary device230V
Degree of protection (IP)IP20
Rated voltage415V
Rated short-circuit breaking capacity according to IEC 60947-210kA
Pollution degree3
Over voltage category4
Additional equipment attached at deliveryRemote drive
Concurrently switching neutral conductorNo
Control voltage type auxiliary equipmentAC
Construction size (according to DIN 43880)3
Construction size (according to DIN 43880)3
Number of poles2
Current limiting class0
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

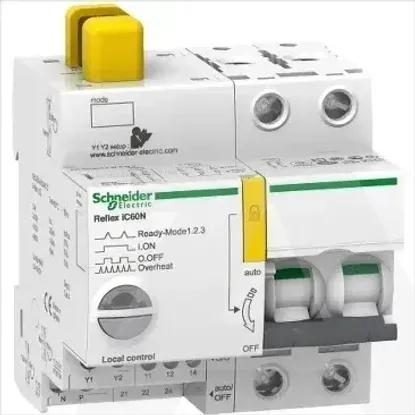

A9C63216 | Reflex IC60N 10KA TI24 16A 2P D
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB) with auxiliary device
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Voltage type
AC
Frequency
50Hz
Rated current
16A
Built-in depth
44.5mm
Rated short-circuit breaking capacity according to EN 60898
0kA
Release characteristic
D
Width in number of modular spacings
4.5
Frequency
50 .. 60Hz
Rated switch current auxiliary device
1A
Rated voltage auxiliary device
230V
Degree of protection (IP)
IP20
Rated voltage
415V
Rated short-circuit breaking capacity according to IEC 60947-2
10kA
Pollution degree
3
Over voltage category
4
Additional equipment attached at delivery
Remote drive
Concurrently switching neutral conductor
Control voltage type auxiliary equipment
AC
Construction size (according to DIN 43880)
3
Construction size (according to DIN 43880)
3
Number of poles
2
Current limiting class
0
