Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB) with auxiliary device
- •1 KOM
- •SCHNEIDER
Technical specifications
Rated voltage415V
Rated current25A
Frequency50Hz
Built-in depth44.5mm
Voltage typeAC
Over voltage category4
Release characteristicB
Construction size (according to DIN 43880)3
Current limiting class0
Number of poles3
Frequency50 - 60Hz
Rated switch current auxiliary device1A
Degree of protection (IP)IP20
Additional equipment attached at deliveryRemote drive
Pollution degree3
Concurrently switching neutral conductorNo
Width in number of modular spacings5.5
Control voltage type auxiliary equipmentAC
Rated voltage auxiliary device230V
Construction size (according to DIN 43880)3
Rated short-circuit breaking capacity according to EN 608980kA
Rated short-circuit breaking capacity according to IEC 60947-215kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

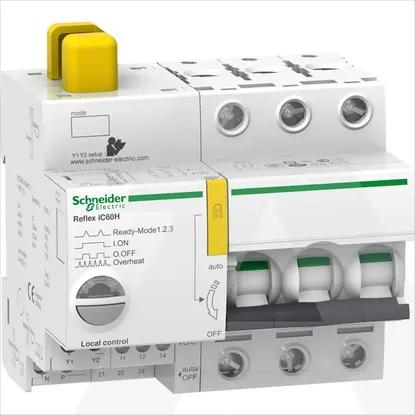

A9C64325 | Reflex IC60H 15KA TI24 25A 3P B
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB) with auxiliary device
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Rated voltage
415V
Rated current
25A
Frequency
50Hz
Built-in depth
44.5mm
Voltage type
AC
Over voltage category
4
Release characteristic
B
Construction size (according to DIN 43880)
3
Current limiting class
0
Number of poles
3
Frequency
50 .. 60Hz
Rated switch current auxiliary device
1A
Degree of protection (IP)
IP20
Additional equipment attached at delivery
Remote drive
Pollution degree
3
Concurrently switching neutral conductor
Width in number of modular spacings
5.5
Control voltage type auxiliary equipment
AC
Rated voltage auxiliary device
230V
Construction size (according to DIN 43880)
3
Rated short-circuit breaking capacity according to EN 60898
0kA
Rated short-circuit breaking capacity according to IEC 60947-2
15kA
