Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB) with auxiliary device
- •1 KOM
- •SCHNEIDER
Technical specifications
Voltage typeAC
Rated current10A
Rated switch current auxiliary device1A
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
Pollution degree3
Rated voltage415V
Construction size (according to DIN 43880)3
Over voltage category4
Release characteristicC
Current limiting class0
Additional equipment attached at deliveryRemote drive
Control voltage type auxiliary equipmentAC
Rated short-circuit breaking capacity according to EN 608980kA
Rated short-circuit breaking capacity according to IEC 60947-215kA
Rated voltage auxiliary device230V
Frequency50 - 60Hz
Width in number of modular spacings4.5
Number of poles2
Built-in depth44.5mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

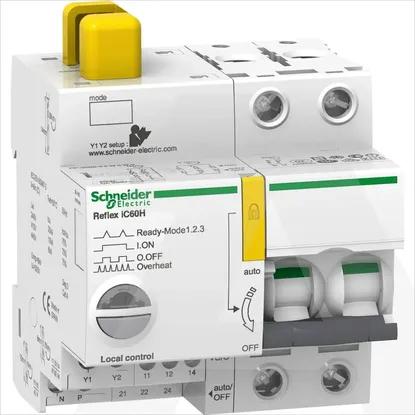

A9C65210 | Reflex IC60H 15KA TI24 10A 2P C
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB) with auxiliary device
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Voltage type
AC
Rated current
10A
Rated switch current auxiliary device
1A
Concurrently switching neutral conductor
Degree of protection (IP)
IP20
Pollution degree
3
Rated voltage
415V
Construction size (according to DIN 43880)
3
Over voltage category
4
Release characteristic
C
Current limiting class
0
Additional equipment attached at delivery
Remote drive
Control voltage type auxiliary equipment
AC
Rated short-circuit breaking capacity according to EN 60898
0kA
Rated short-circuit breaking capacity according to IEC 60947-2
15kA
Rated voltage auxiliary device
230V
Frequency
50 .. 60Hz
Width in number of modular spacings
4.5
Number of poles
2
Built-in depth
44.5mm
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
