Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •SCHNEIDER

Technical specifications

Built-in depth44.5mm
Rated current4A
Voltage typeAC/DC
Concurrently switching neutral conductorNo
Current limiting class3
Frequency50 - 60Hz
Degree of protection (IP)IP20
Number of protected poles1
Rated voltage230V
Flush-mounted installationNo
Over voltage category4
Explosion-proofNo
Connectable conductor cross section solid-core1 - 25mm²
Width in number of modular spacings1
Ambient temperature during operating-35 - 70°C
Connectable conductor cross section multi-wired1 - 16mm²
Number of poles (total)1
Rated insulation voltage Ui500V
Additional equipment possibleYes
Pollution degree3
Release characteristicB
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Rated impulse withstand voltage Uimp6kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

A9F73104 | Prekidac Minijaturni IC60N 1P 4A B

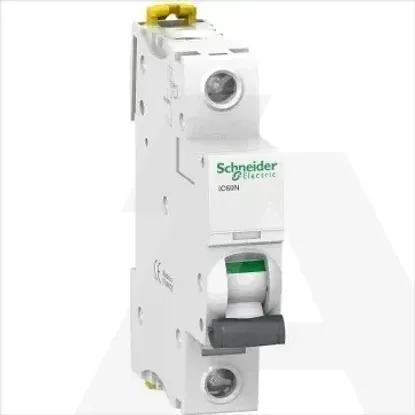

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • SCHNEIDER

Technical specifications

Built-in depth

44.5mm

Rated current

4A

Voltage type

AC/DC

Concurrently switching neutral conductor

Current limiting class

3

Frequency

50 .. 60Hz

Degree of protection (IP)

IP20

Number of protected poles

1

Rated voltage

230V

Flush-mounted installation

Over voltage category

4

Explosion-proof

Connectable conductor cross section solid-core

1 .. 25mm²

Width in number of modular spacings

1

Ambient temperature during operating

-35 .. 70°C

Connectable conductor cross section multi-wired

1 .. 16mm²

Number of poles (total)

1

Rated insulation voltage Ui

500V

Additional equipment possible

Pollution degree

3

Release characteristic

B

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

50kA

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

6kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

-kA

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

-kA

Rated impulse withstand voltage Uimp

6kV
