Details

  • •
  • •Circuit breakers and fuses

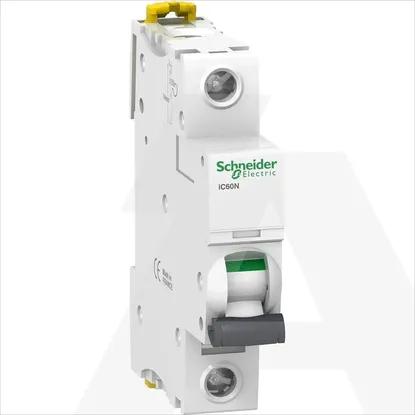

  • •Miniature circuit breaker (MCB)
  • •Minimum order quantity: 1 pcs
  • •SCHNEIDER

Technical specifications

Width in number of modular spacings1
Built-in depth44.5mm
Rated voltage230V
Voltage typeAC/DC
Rated insulation voltage Ui500V
Frequency50 - 60Hz
Current limiting class3
Pollution degree3
Over voltage category4
Explosion-proofNo
Connectable conductor cross section multi-wired1 - 16mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Connectable conductor cross section solid-core1 - 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Concurrently switching neutral conductorNo
Ambient temperature during operating-35 - 70°C
Rated impulse withstand voltage Uimp6kV
Number of protected poles1
Additional equipment possibleYes
Flush-mounted installationNo
Degree of protection (IP)IP20
Rated current0.5A
Release characteristicC
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
