Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Release characteristicC
Voltage typeAC/DC
Degree of protection (IP)IP20
Pollution degree3
Explosion-proofNo
Additional equipment possibleYes
Connectable conductor cross section solid-core1 - 25mm²
Connectable conductor cross section multi-wired1 - 16mm²
Width in number of modular spacings2
Ambient temperature during operating-35 - 70°C
Flush-mounted installationNo
Concurrently switching neutral conductorNo
Rated voltage400V
Built-in depth9mm
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated insulation voltage Ui400V
Current limiting class2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Over voltage category400
Number of protected poles2
Frequency50 - 60Hz
Number of poles (total)2
Rated current2A
Rated impulse withstand voltage Uimp6kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

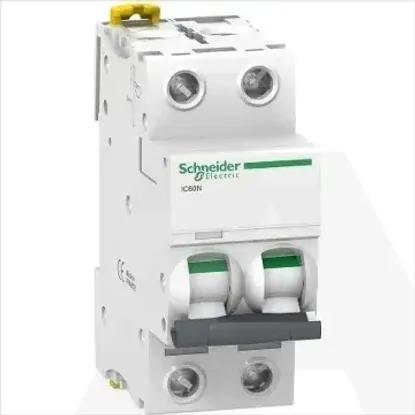

A9F74202 | Prekidac Minijaturni IC60N 2P 2A C
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Release characteristic
C
Voltage type
AC/DC
Degree of protection (IP)
IP20
Pollution degree
3
Explosion-proof
Additional equipment possible
Connectable conductor cross section solid-core
1 .. 25mm²
Connectable conductor cross section multi-wired
1 .. 16mm²
Width in number of modular spacings
2
Ambient temperature during operating
-35 .. 70°C
Flush-mounted installation
Concurrently switching neutral conductor
Rated voltage
400V
Built-in depth
9mm
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6kA
Rated insulation voltage Ui
400V
Current limiting class
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6kA
Over voltage category
400
Number of protected poles
2
Frequency
50 .. 60Hz
Number of poles (total)
2
Rated current
2A
Rated impulse withstand voltage Uimp
6kV
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
