Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Built-in depth44.5mm
Current limiting class3
Width in number of modular spacings3
Voltage typeAC/DC
Pollution degree3
Explosion-proofNo
Frequency50 - 60Hz
Release characteristicC
Rated current1A
Rated voltage400V
Rated insulation voltage Ui500V
Over voltage category4
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
Number of protected poles3
Connectable conductor cross section solid-core1 - 25mm²
Connectable conductor cross section multi-wired1 - 16mm²
Ambient temperature during operating-35 - 70°C
Flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Additional equipment possibleYes
Rated impulse withstand voltage Uimp6kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Number of poles (total)3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

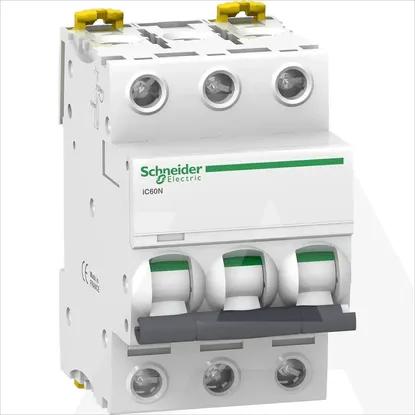

A9F74301 | Prekidac Minijaturni IC60N 3P 1A C
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Built-in depth
44.5mm
Current limiting class
3
Width in number of modular spacings
3
Voltage type
AC/DC
Pollution degree
3
Explosion-proof
Frequency
50 .. 60Hz
Release characteristic
C
Rated current
1A
Rated voltage
400V
Rated insulation voltage Ui
500V
Over voltage category
4
Degree of protection (IP)
IP20
Concurrently switching neutral conductor
Number of protected poles
3
Connectable conductor cross section solid-core
1 .. 25mm²
Connectable conductor cross section multi-wired
1 .. 16mm²
Ambient temperature during operating
-35 .. 70°C
Flush-mounted installation
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6kA
Additional equipment possible
Rated impulse withstand voltage Uimp
6kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
50kA
Number of poles (total)
3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
50kA
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
