Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Rated current2A
Release characteristicC
Frequency50 - 60Hz
Rated voltage400V
Voltage typeAC/DC
Built-in depth44.5mm
Concurrently switching neutral conductorNo
Ambient temperature during operating-35 - 70°C
Rated impulse withstand voltage Uimp6kV
Over voltage category4
Width in number of modular spacings3
Additional equipment possibleYes
Connectable conductor cross section multi-wired1 - 16mm²
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Number of protected poles3
Flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Connectable conductor cross section solid-core1 - 25mm²
Degree of protection (IP)IP20
Current limiting class3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Explosion-proofNo
Pollution degree3
Rated insulation voltage Ui500V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

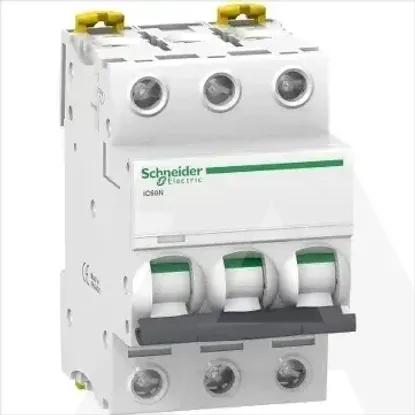

A9F74302 | Prekidac Minijaturni IC60N 3P 2A C
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Rated current
2A
Release characteristic
C
Frequency
50 .. 60Hz
Rated voltage
400V
Voltage type
AC/DC
Built-in depth
44.5mm
Concurrently switching neutral conductor
Ambient temperature during operating
-35 .. 70°C
Rated impulse withstand voltage Uimp
6kV
Over voltage category
4
Width in number of modular spacings
3
Additional equipment possible
Connectable conductor cross section multi-wired
1 .. 16mm²
Number of poles (total)
3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6kA
Number of protected poles
3
Flush-mounted installation
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6kA
Connectable conductor cross section solid-core
1 .. 25mm²
Degree of protection (IP)
IP20
Current limiting class
3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
50kA
Explosion-proof
Pollution degree
3
Rated insulation voltage Ui
500V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
50kA
