Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Built-in depth44.5mm
Voltage typeAC/DC
Rated current1A
Rated voltage400V
Release characteristicC
Rated insulation voltage Ui500V
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Number of protected poles2
Rated impulse withstand voltage Uimp6kV
Connectable conductor cross section multi-wired1 - 16mm²
Over voltage category4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Number of poles (total)2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V70kA
Explosion-proofNo
Width in number of modular spacings2
Ambient temperature during operating-35 - 70°C
Connectable conductor cross section solid-core1 - 25mm²
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V70kA
Flush-mounted installationNo
Current limiting class3
Pollution degree3
Degree of protection (IP)IP20
Frequency50 - 60Hz
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

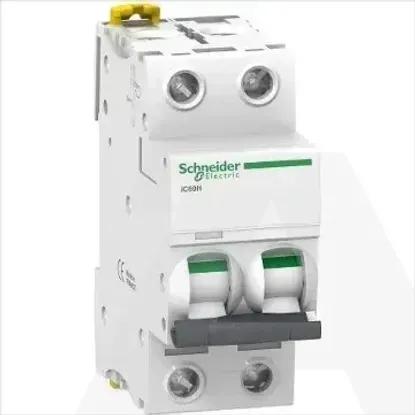

A9F84201 | Prekidac Minijaturni IC60H 2P 1A C
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Built-in depth
44.5mm
Voltage type
AC/DC
Rated current
1A
Rated voltage
400V
Release characteristic
C
Rated insulation voltage Ui
500V
Concurrently switching neutral conductor
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Number of protected poles
2
Rated impulse withstand voltage Uimp
6kV
Connectable conductor cross section multi-wired
1 .. 16mm²
Over voltage category
4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Number of poles (total)
2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
70kA
Explosion-proof
Width in number of modular spacings
2
Ambient temperature during operating
-35 .. 70°C
Connectable conductor cross section solid-core
1 .. 25mm²
Additional equipment possible
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
70kA
Flush-mounted installation
Current limiting class
3
Pollution degree
3
Degree of protection (IP)
IP20
Frequency
50 .. 60Hz
