Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Rated insulation voltage Ui500V
Current limiting class3
Voltage typeAC/DC
Rated voltage400V
Frequency50 - 60Hz
Rated current6A
Built-in depth44.5mm
Release characteristicD
Degree of protection (IP)IP20
Number of protected poles3
Number of poles (total)3
Rated impulse withstand voltage Uimp6kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V30kA
Over voltage category4
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Concurrently switching neutral conductorNo
Connectable conductor cross section solid-core1 - 25mm²
Ambient temperature during operating-35 - 70°C
Additional equipment possibleYes
Explosion-proofNo
Flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Pollution degree3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Width in number of modular spacings3
Connectable conductor cross section multi-wired1 - 16mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

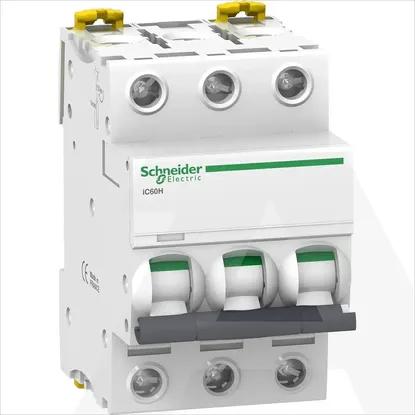

A9F85306 | Prekidac Minijaturni IC60H 3P 6A D
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Rated insulation voltage Ui
500V
Current limiting class
3
Voltage type
AC/DC
Rated voltage
400V
Frequency
50 .. 60Hz
Rated current
6A
Built-in depth
44.5mm
Release characteristic
D
Degree of protection (IP)
IP20
Number of protected poles
3
Number of poles (total)
3
Rated impulse withstand voltage Uimp
6kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
30kA
Over voltage category
4
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15kA
Concurrently switching neutral conductor
Connectable conductor cross section solid-core
1 .. 25mm²
Ambient temperature during operating
-35 .. 70°C
Additional equipment possible
Explosion-proof
Flush-mounted installation
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Pollution degree
3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Width in number of modular spacings
3
Connectable conductor cross section multi-wired
1 .. 16mm²
