Details

  • •
  • •Circuit breakers and fuses

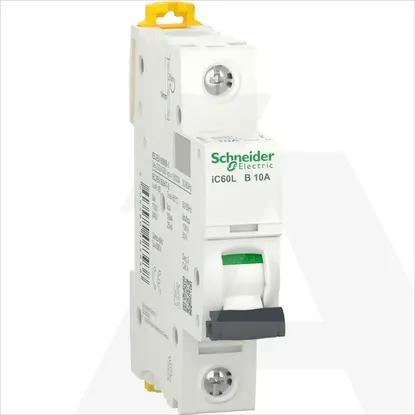

  • •Miniature circuit breaker (MCB)
  • •Minimum order quantity: 1 pcs
  • •SCHNEIDER

Technical specifications

Built-in depth44.5mm
Voltage typeAC/DC
Explosion-proofNo
Rated insulation voltage Ui500V
Ambient temperature during operating-35 - 70°C
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Additional equipment possibleYes
Concurrently switching neutral conductorNo
Over voltage category4
Connectable conductor cross section multi-wired1 - 16mm²
Frequency50 - 60Hz
Current limiting class3
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Width in number of modular spacings1
Rated impulse withstand voltage Uimp6kV
Pollution degree3
Connectable conductor cross section solid-core1 - 25mm²
Number of protected poles1
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated voltage230V
Rated current10A
Release characteristicB
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V15kA
