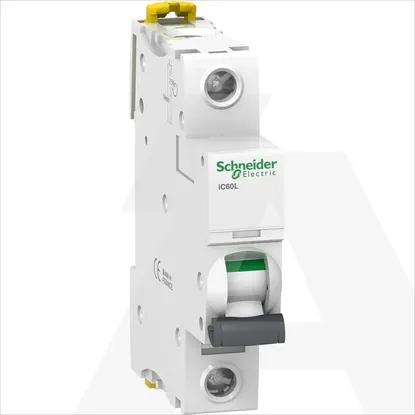

A9F94106 | Prekidac Minijaturni IC60L 1P 6A C
Code: 1694302
ManufacturerSchneider Electric
Catalog numberA9F94106
TypeA9F94106
CategoryMiniature circuit breaker (MCB)
EAN code3606480084515
Details
- •
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •SCHNEIDER
Technical specifications
Rated voltage230V
Voltage typeAC/DC
Built-in depth44.5mm
Current limiting class3
Rated insulation voltage Ui500V
Frequency50 - 60Hz
Degree of protection (IP)IP20
Width in number of modular spacings1
Over voltage category4
Explosion-proofNo
Pollution degree3
Concurrently switching neutral conductorNo
Ambient temperature during operating-35 - 70°C
Additional equipment possibleYes
Connectable conductor cross section multi-wired1 - 16mm²
Rated impulse withstand voltage Uimp6kV
Flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Connectable conductor cross section solid-core1 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Number of protected poles1
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Rated current6A
Release characteristicC
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V15kA
