Details

  • •
  • •Circuit breakers and fuses

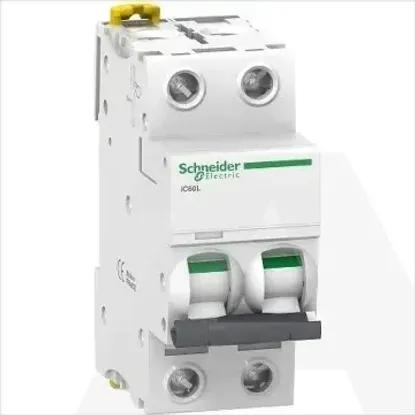

  • •Miniature circuit breaker (MCB)
  • •Minimum order quantity: 1 pcs
  • •SCHNEIDER

Technical specifications

Frequency50 - 60Hz
Explosion-proofNo
Number of protected poles2
Over voltage category4
Pollution degree3
Width in number of modular spacings2
Voltage typeAC/DC
Rated voltage400V
Degree of protection (IP)IP20
Built-in depth44.5mm
Current limiting class3
Rated insulation voltage Ui500V
Connectable conductor cross section multi-wired1 - 16mm²
Concurrently switching neutral conductorNo
Flush-mounted installationNo
Ambient temperature during operating-35 - 70°C
Connectable conductor cross section solid-core1 - 25mm²
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V15kA
Rated impulse withstand voltage Uimp6kV
Rated current20A
Release characteristicC
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V15kA
