Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Current limiting class3
Rated insulation voltage Ui500V
Rated voltage400V
Release characteristicK
Rated current2A
Voltage typeAC/DC
Built-in depth44.5mm
Frequency50 - 60Hz
Width in number of modular spacings3
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
Over voltage category4
Number of poles (total)3
Connectable conductor cross section solid-core1 - 25mm²
Additional equipment possibleYes
Number of protected poles3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V15kA
Pollution degree3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V100kA
Ambient temperature during operating-35 - 70°C
Explosion-proofNo
Connectable conductor cross section multi-wired1 - 16mm²
Rated impulse withstand voltage Uimp6kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V100kA
Flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V15kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

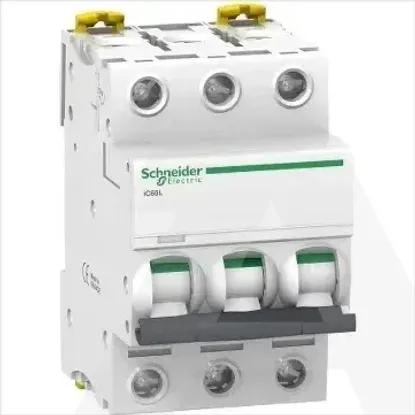

A9F95302 | Prekidac Minijaturni IC60L 3P 2A K
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Current limiting class
3
Rated insulation voltage Ui
500V
Rated voltage
400V
Release characteristic
K
Rated current
2A
Voltage type
AC/DC
Built-in depth
44.5mm
Frequency
50 .. 60Hz
Width in number of modular spacings
3
Degree of protection (IP)
IP20
Concurrently switching neutral conductor
Over voltage category
4
Number of poles (total)
3
Connectable conductor cross section solid-core
1 .. 25mm²
Additional equipment possible
Number of protected poles
3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
15kA
Pollution degree
3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
100kA
Ambient temperature during operating
-35 .. 70°C
Explosion-proof
Connectable conductor cross section multi-wired
1 .. 16mm²
Rated impulse withstand voltage Uimp
6kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
100kA
Flush-mounted installation
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
15kA
