  • •Circuit breakers and fuses

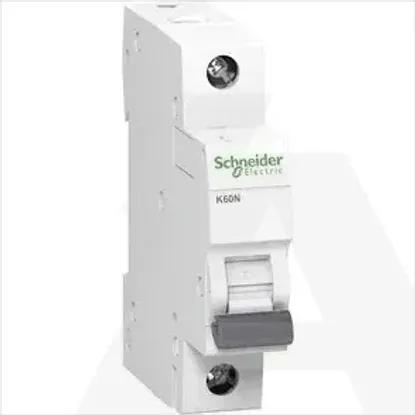

  • •Miniature circuit breaker (MCB)
  • •Minimum order quantity: 1 pcs
  • •SCHNEIDER

Technical specifications

Over voltage category0
Rated voltage230V
Concurrently switching neutral conductorNo
Built-in depth70mm
Voltage typeAC
Degree of protection (IP)IP20
Pollution degree2
Current limiting class3
Number of protected poles1
Width in number of modular spacings2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V0kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
Suitable for flush-mounted installationNo
Additional equipment possibleNo
Rated current6A
Release characteristicB
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
