Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •SCHNEIDER

Technical specifications

Built-in depth70mm
Voltage typeAC
Frequency50 - 60Hz
Width in number of modular spacings6
Pollution degree2
Release characteristicC
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
Suitable for flush-mounted installationNo
Additional equipment possibleNo
Rated current25A
Rated voltage400V
Rated insulation voltage Ui400V
Current limiting class25
Over voltage category400
Number of protected poles3
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V6kA
Rated impulse withstand voltage Uimp400kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

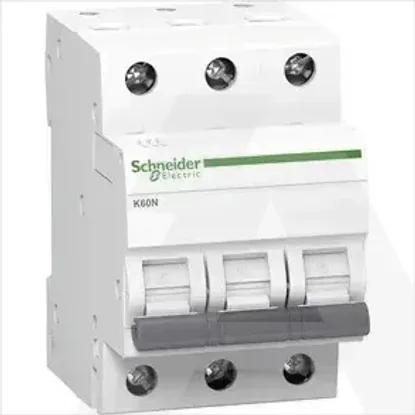

A9K02325 | Prekidac Minijaturni K60N 6KA 3P 25A C

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • SCHNEIDER

Technical specifications

Built-in depth

70mm

Voltage type

AC

Frequency

50 .. 60Hz

Width in number of modular spacings

6

Pollution degree

2

Release characteristic

C

Degree of protection (IP)

IP20

Concurrently switching neutral conductor

Suitable for flush-mounted installation

Additional equipment possible

Rated current

25A

Rated voltage

400V

Rated insulation voltage Ui

400V

Current limiting class

25

Over voltage category

400

Number of protected poles

3

Number of poles (total)

3

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

6kA

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

6kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

6kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

6kA

Rated impulse withstand voltage Uimp

400kV

VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
